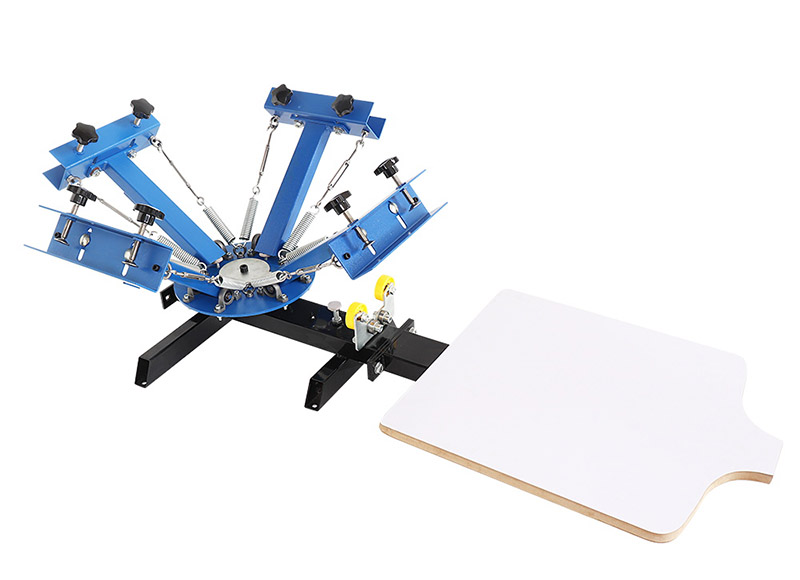

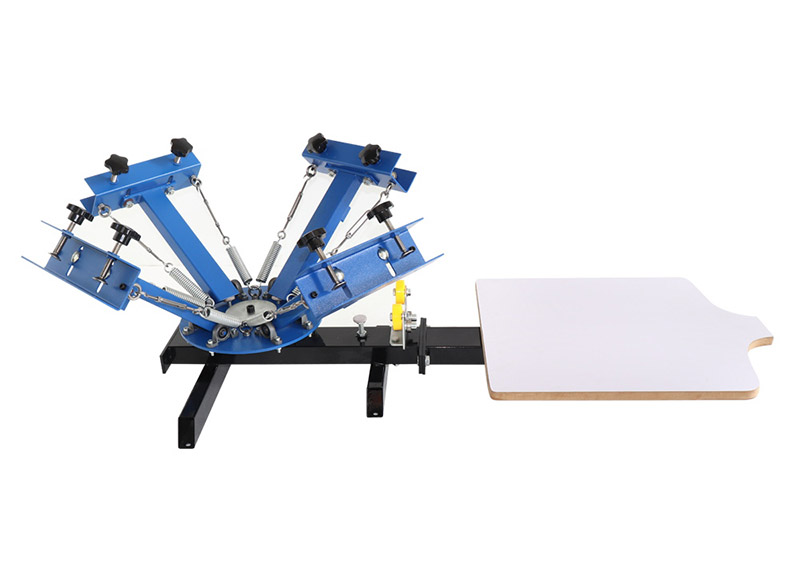

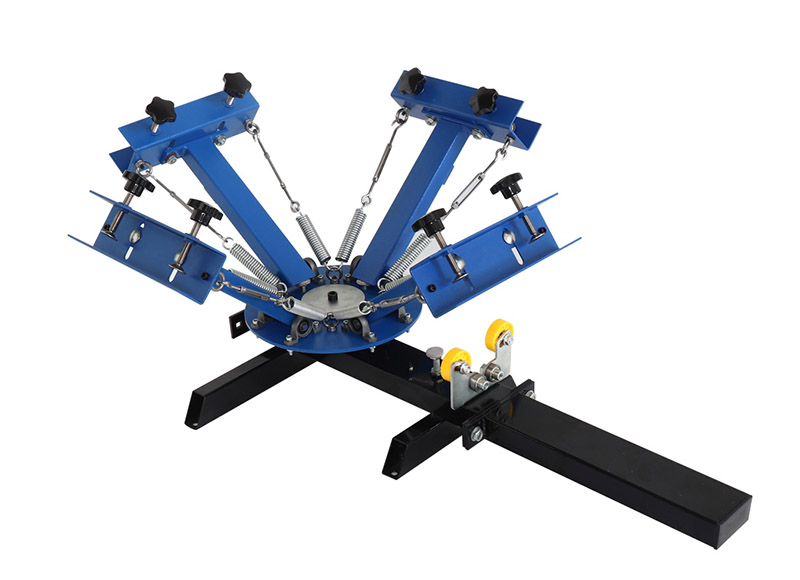

Manual Screen Printer - 4 color 1 station silk screen printing machine

Characters and feature

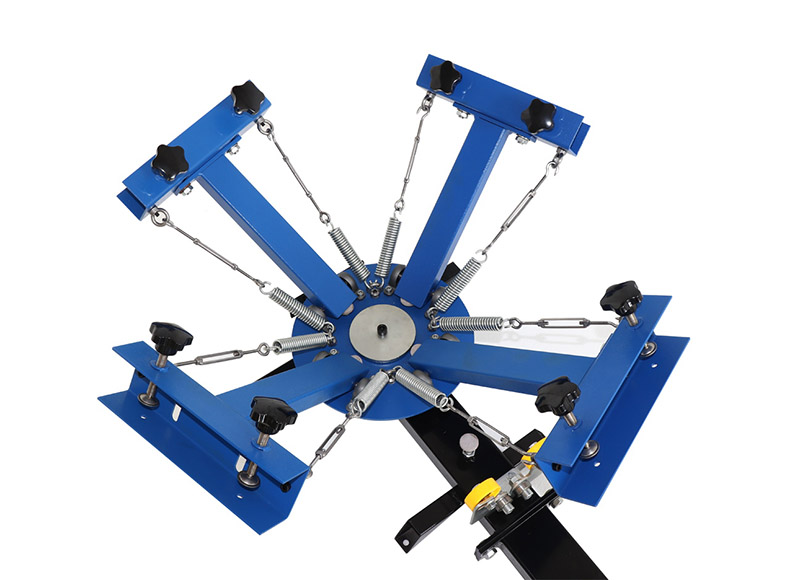

1The chuck of the screen frame can rotate at 360 degree.

2Each screen frame's fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame.

3According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.

4The pallet is connected with the pallet arm by braket, it can move around 10cm (4 in) from front to back.

5This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.

6The machine adopts advanced electrostatic spraying process, various parts using stainless steel, aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.

7All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list, parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.

Price for NS401-S: 160USD/set

Production capacity : 100 sets/month

Package:59X59X29 cm ,weight:26 kgs, Carton box

Delivery:1set< 10days , 5-10 sets<20days, urgent project can be discussed

Payment term:TT , Western union, Paypal, Alibaba trade assurance order

For more information pls add wechat&whatsApp:+86-15818438463
