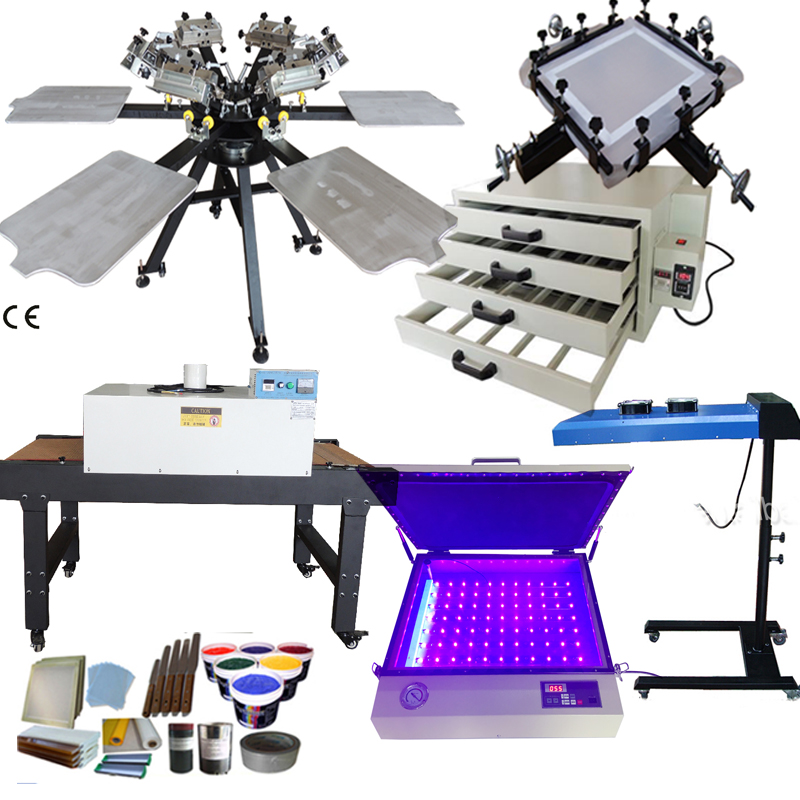

Manual Screen Printer - 6 color 6 station screen printing equipment full set with flash dryer tunnel dryer exposure machine

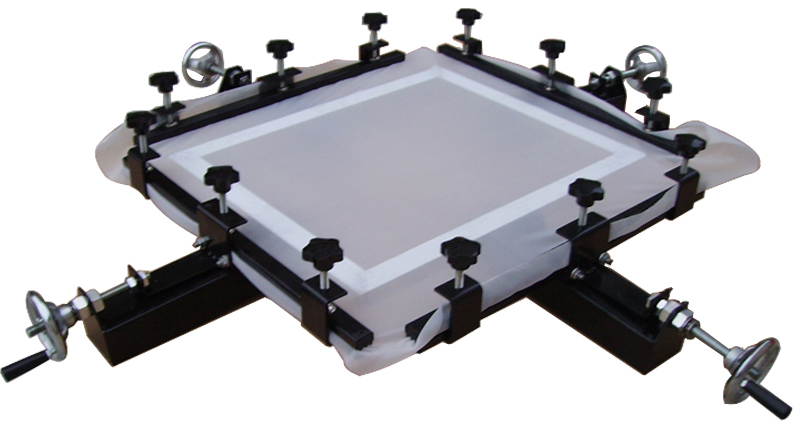

NA104 Manual hand screen stretcher silk screen stretcher
max area:60*60cm

you may adjust the size as per your needs, max stretcher area is 60x60cm, this screen stretcher is simple with affordable price,we provide operation video ,the mesh tension can be measured by tension weight.

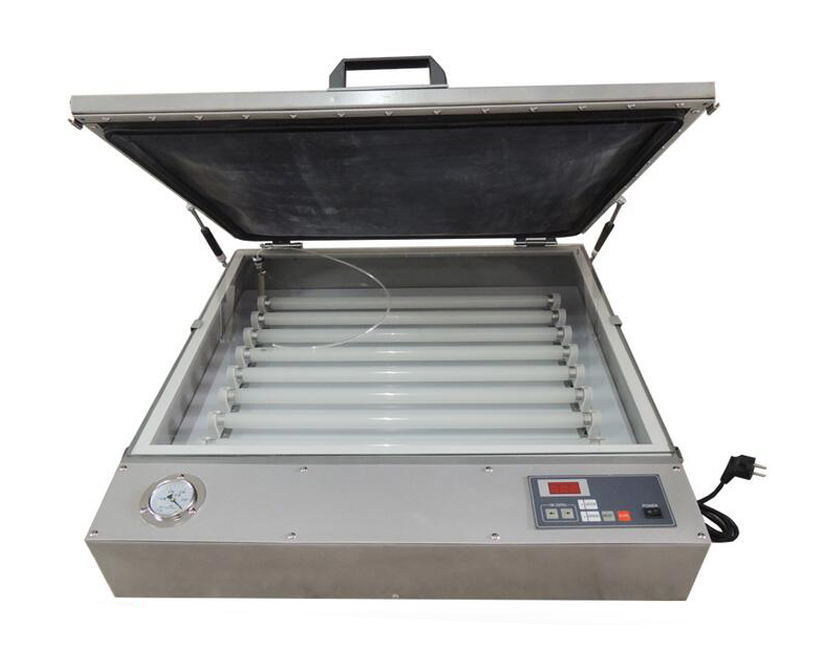

Model : MD5060 New Vacuum Exposure Unit
Power: 110V,220V/50Hz, 400W
 Light source:UV light
 Lamp power*amount: 20W*8pcs
 Digital display of exposure time setting
 Max.frame size : 500*600mm

After making the screens, we have to expose the image onto the screen, that process called exposure.first ,you need to print the pattern onto the film, coating the screen with emulsion,and then put the film, screen onto the glass of the exposure machine, turn down the cover, and set the time that needed to exposure the image,we have UV light style and LED light style, usually the LED light style is much more effecient than the normal UV style,takes about 15-30 seconds, and the light can be over 10000hours life time.

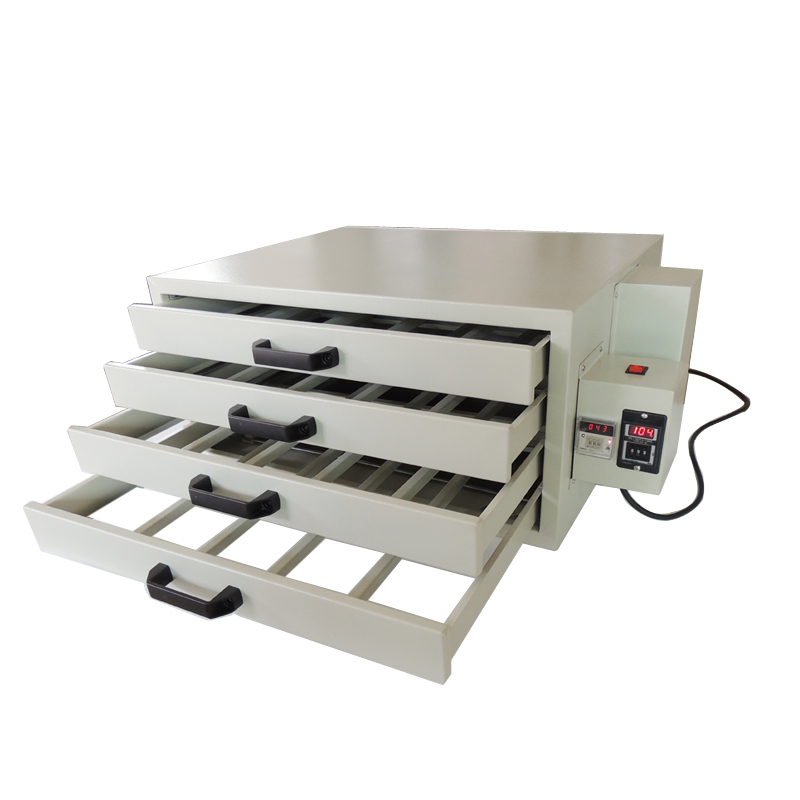

Drying Cabinet for tshirt printing process
Power : 110V/220V, 2000W
Max.screen plate drying quantity : 4pcs
Max.frame size : 64*53*4.5cm

This drying cabinet is used to dry the screen, after making the screen you need to wash the screen and then coating the emulsion, after exposure the screen you also need to wash the emulsion which is not being cured, and then dry the screen again, once you finished printing ,you also need to wash the screen and cleaning the ink,before storage, you also need to dry the screen.so it is needed during the pring process, to save the life time of your screen.

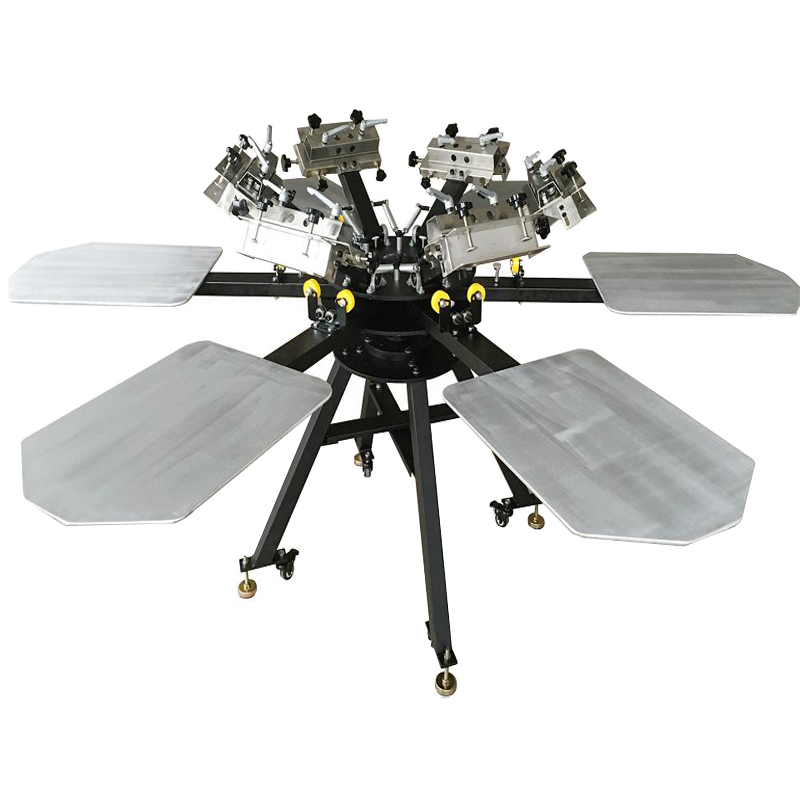

 6 color  6 station screen printing machine(NS606-MR)

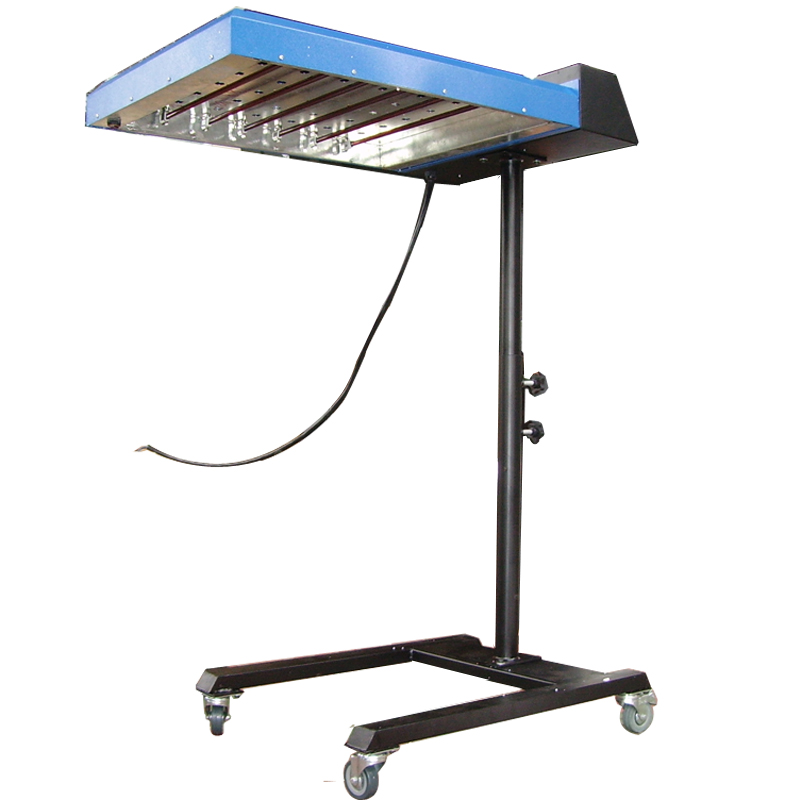

Model : ND606 IR Automatic Flash Dryer With Sensor
 Power : 220 V 50 Hz, 6000W
 The machine with sensor, when the platen coming, automatic turn on to working according to your setting time
 Full 20" x 24" (500 x 600mm) heating area
 Adjustable height floor stand ( from 750mm to 1200mm)
 IR lamp, heating temperature gone up quick

being know as drying oven screen printing This flash dryer is our IR automatic flash dryer with sensor. it is used to dry the surface of the ink, for example, when we print a t shirt with 4 color pattern, we have to print the color one by one, once we finished printing one color and prepare to print the second color, you need to have the first printed color dryered ,otherwise the second color would being absorbed by the first color, which would cause color mixed up and resulted in the third color that we do not want to see, so we need the flash dryer in that case.

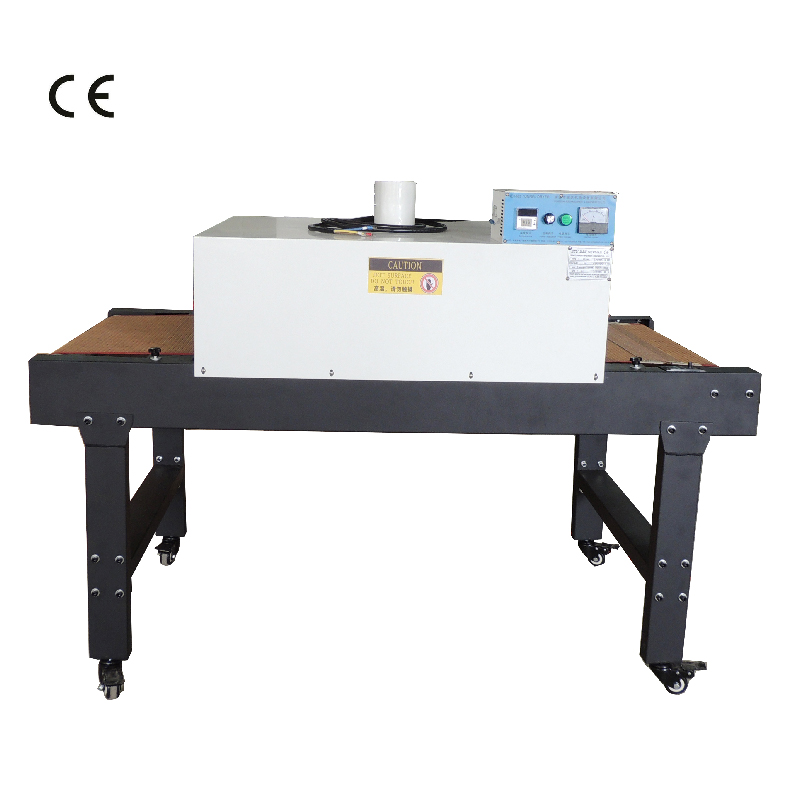

ND1865 Tunnel Dryer Machine
Machine Legth : 180CM Machine Width : 65cm
Heating area: 100 x 65cm   220V 4800W
capacity:It can dry 200pcs t shirt one hour
