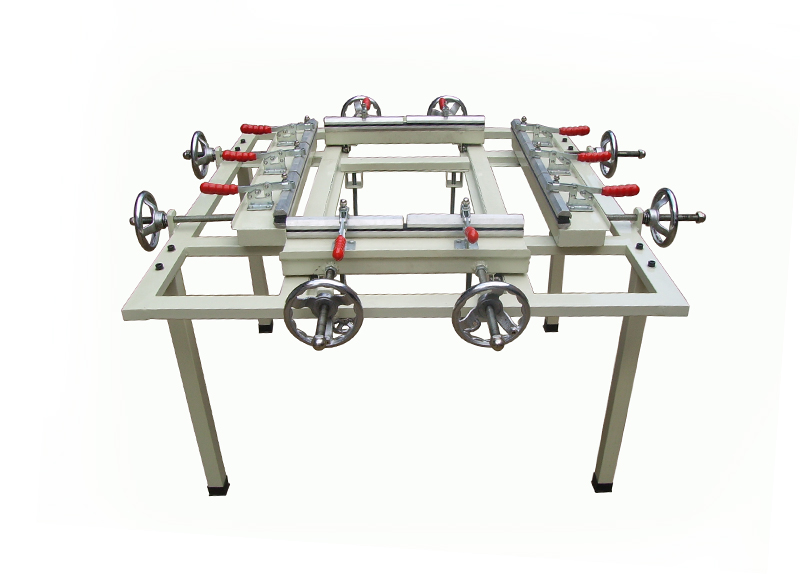

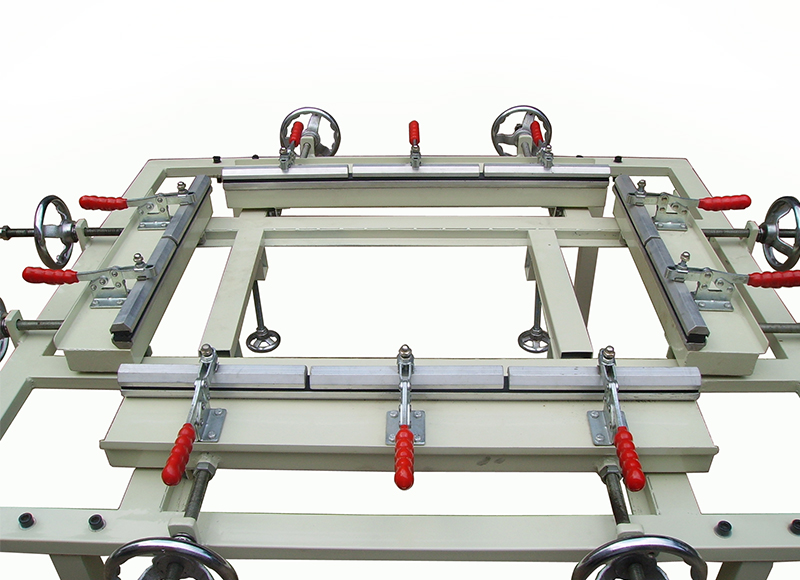

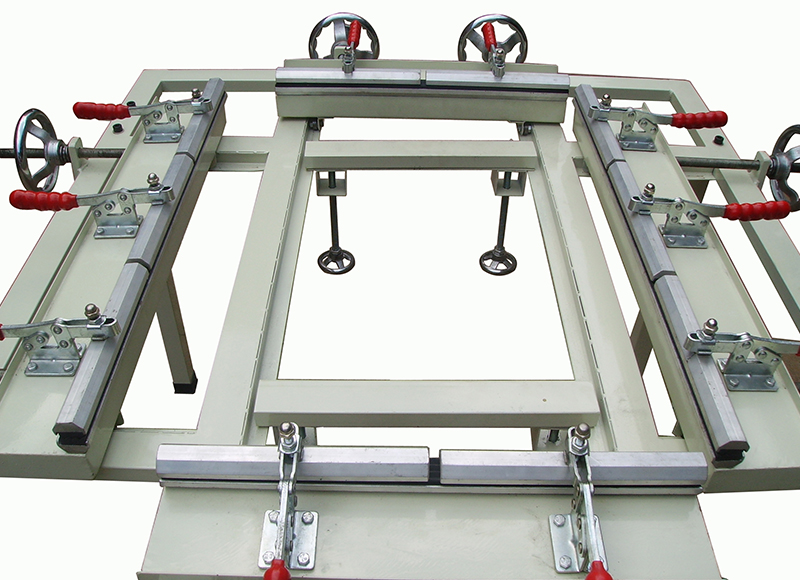

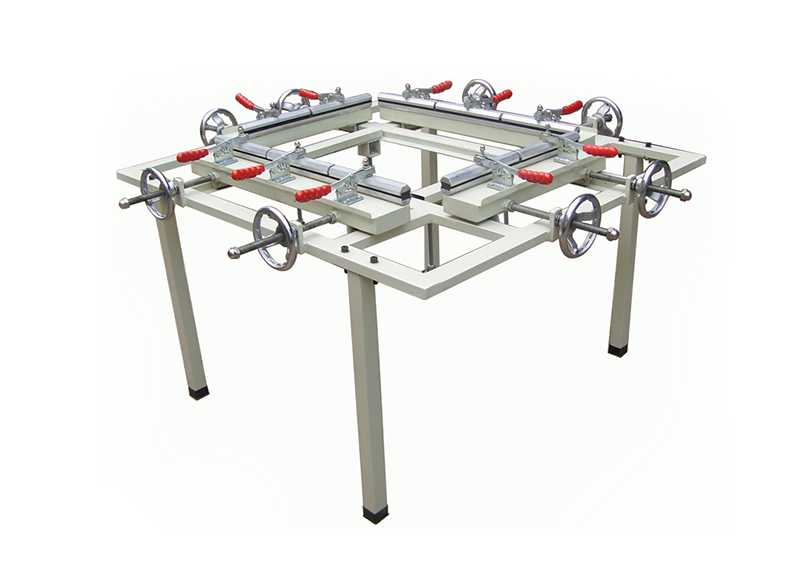

NA105
| Model | NA105 |
| Material | Metal |
| Stretcher area | 90x120CM |
| Operation | Manual |
| net weight | 70KGS |
| Gross weight | 80KGS |
| packing size | 166X47X44CM |
1.This device is made of frame screen stretcher screen of our latest designed equipment. the machine has small size, light weight, and cannot occupy the space to carry easily.
2.It can make the wire mesh can be even and smooth, and it is very important to make the screen version. The device is split net unit, a unit can be stretched system very small.
Screen stretching is the most important procedure to make screen. Stretching tool and technical define the quality of emulsion coating ,screen stretching and screen printing.
Our company R&D this manual screen stretcher, it is professional design, exquisite craft, brief and utility structure, easy and swift operation ,enormously improves efficiency and quality. It is exposed of four parts with the same appearances, structures and applications.
screen mesh stretcher Operations
1. Put the screen frame on it, the upside must be the ragged face.
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled
