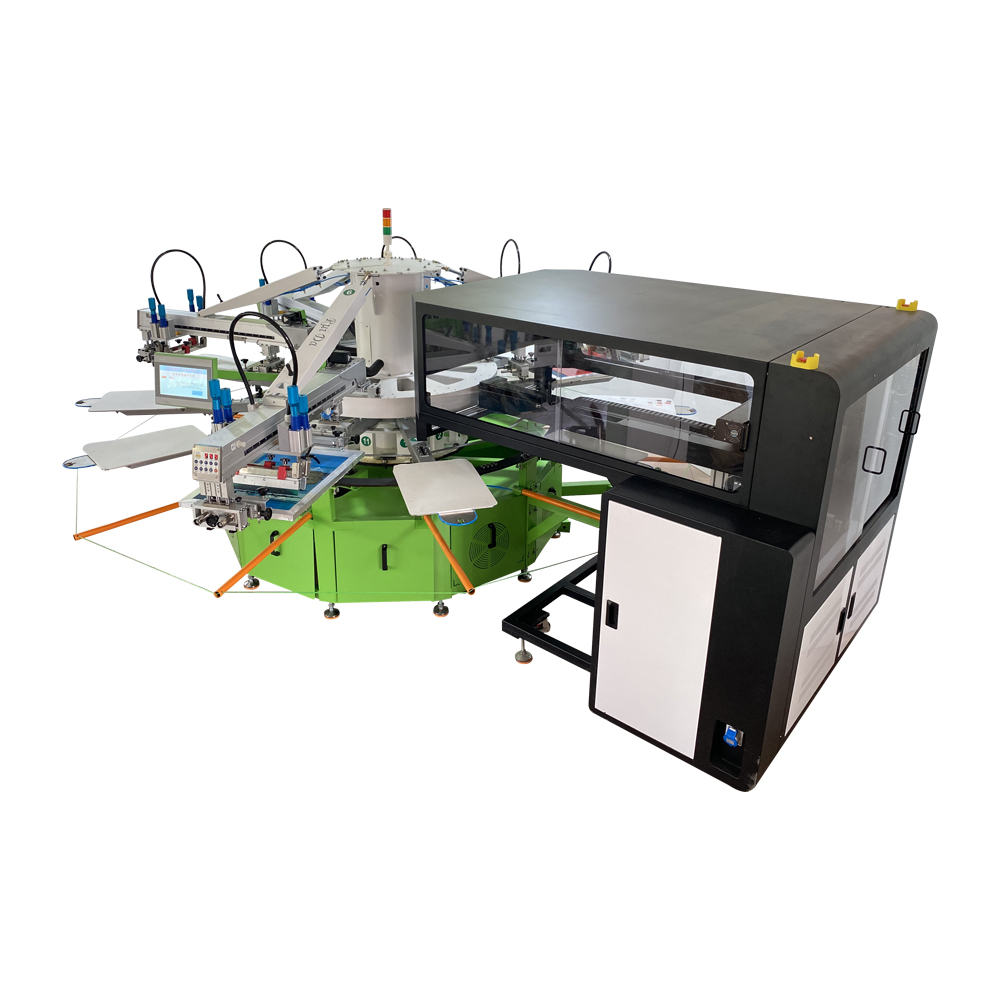

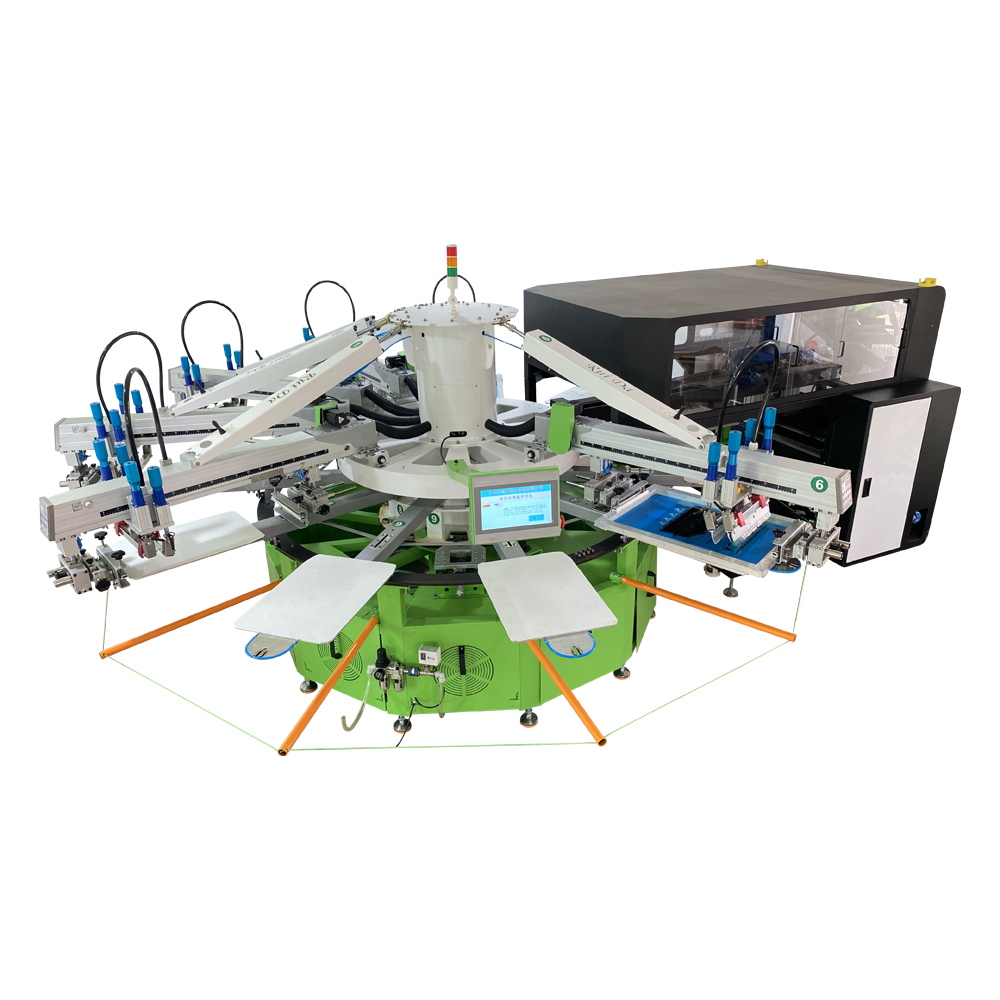

• 6 color 14 stations automatic T shirt silk screen printing machine with 6 flash dryers
• Pallet size : 500x700mm • Max frame size:550x830mm
Gross Power of flash dryers: 36KW with 6pcs flash dryer
• Packaging Details: 3 strong plywood box(214*214*185CM 8.472CBM) (2PCS 170*110*72CM 2.693CBM) total 11.165cbm
Hybrid Digital Printing Machine
Equipment model:Digital Printing Machine
Working environment :Temperature:20°C~28°C
Print Heads: 4 heads / Epson I3200
Working environmen :Humidity40%~60%
Ink colors: Cyan, Magenta, Yellow, Black
Print mode:Unidirectional and waveform bidirectional
Max. print area: 500 mm x 700 mm
Applicable fabrics:Cotton, linen, nylon, terylene
Production speed:± 200 pcs per hour
RIPsoftware :Photo Print/Wasatch/Neostampa special/ printing RIP software
Maximum thickness of medium: 25 mm
Printheadmaintenance: Automatic moisturizing, automatic cleaning, automatic scraping system
Dimension (LxWxH):1820 mm x 1560 mm x 1300 mm
Input format:JPEG/TIFF file format RGB/CMYK color mode
Machine Weight:1500 kg
Printing resolution:720 x 720 DPI;720 x 1080 DPI;360 x 1080DPI
Power requirement:AC220V/single-phase；/50/60HZ
Ink type / capacity:Textile pigment ink；5L
Power consumption:0~ 400 W
Ink supply system :Automatic negative pressure ink supply system
200 to 250pcs/hour
