| Power | 220v,2000W |
| machine size | 1200x900x900mm |
| Max frameDimension | 700x1000mm |
| Vacuum degree | 0.05mpa |
| Net Weight | 100kgs |
| Gross Weight | 140kgs |
| Packing size | 1300x1000x960mm |

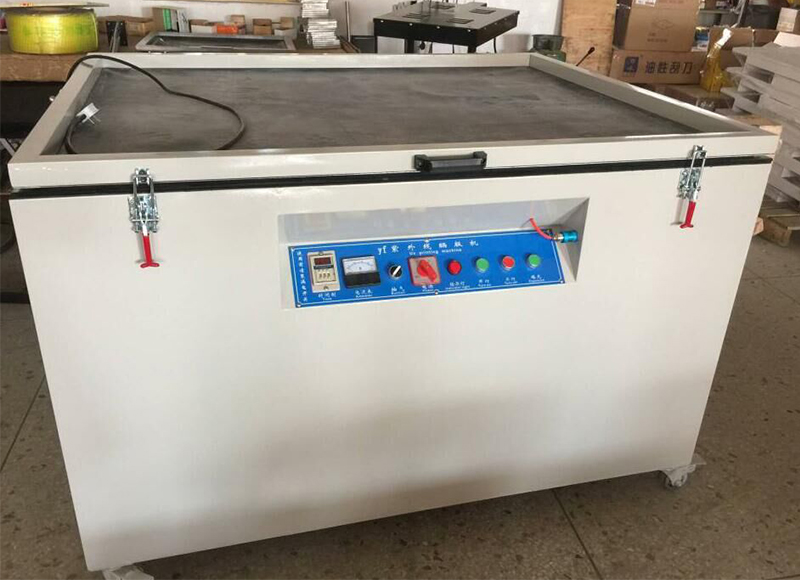

Used in the filed of plate-making such as pad printing steel plate,polymer plate, screen plate,hot stamper plate, when put the film onto the plate into UV exposure machine,start it, the emulsion on the plate will appear a unseen imagine,this is important process on all plate-making technology.
1 Put the film under the frame mesh and then close the lid.
2Turn on the POWER, set the vaccum time ,set the exposure time,press start.
3exposure.
4After time is up,the machine stop working auto-matically,before opening the lid,the air should release completely.
